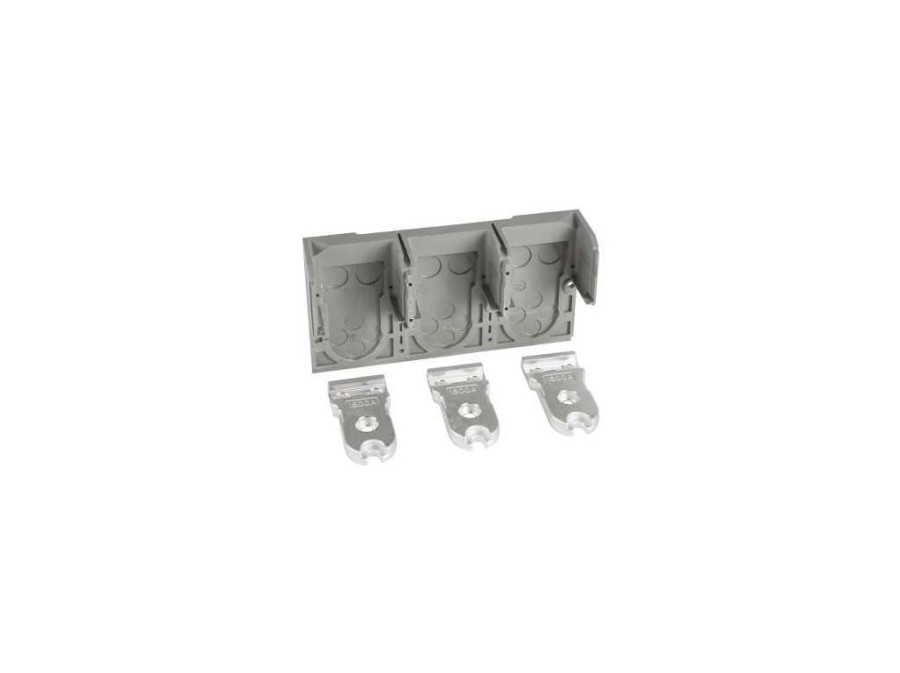

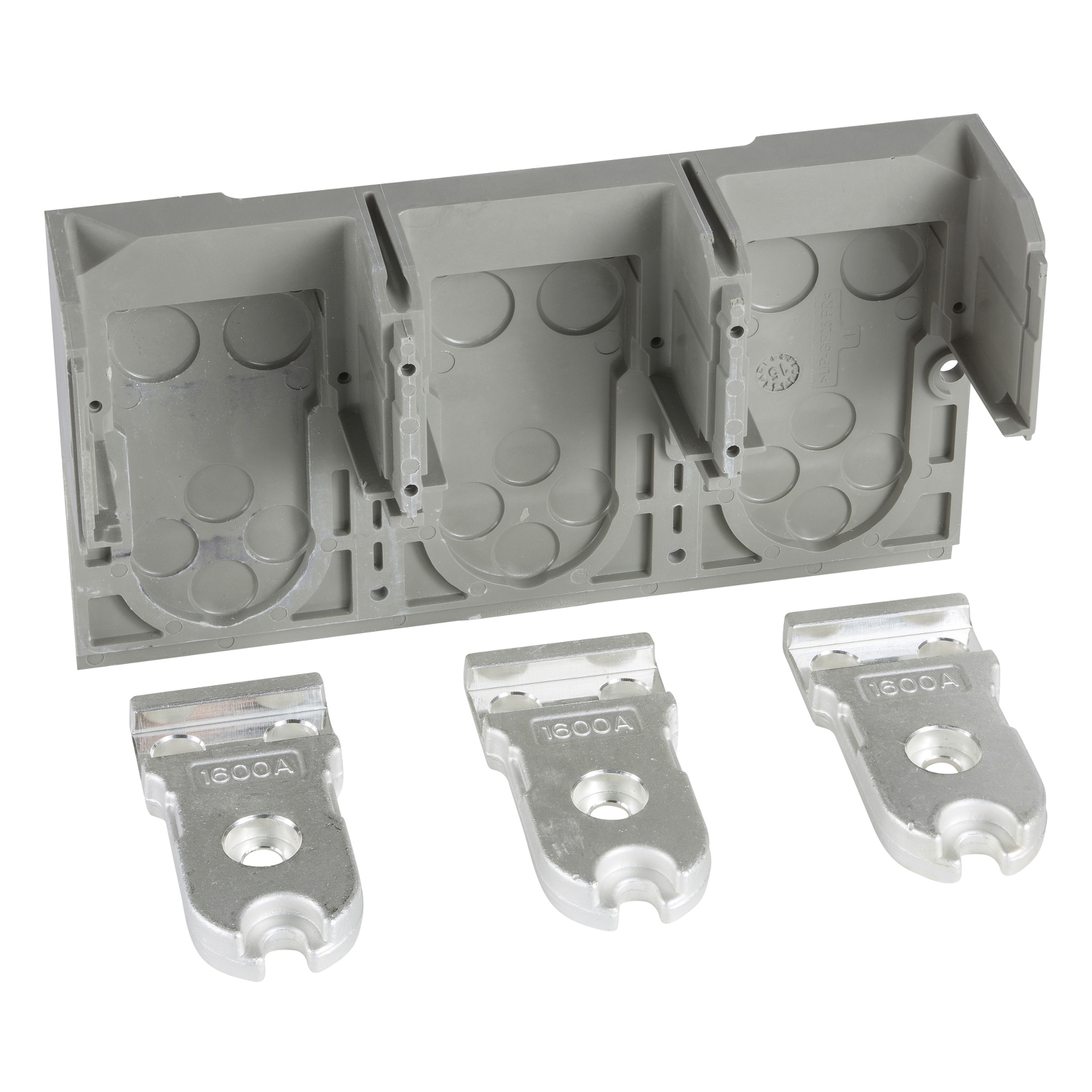

These accessories are front connections for 3 poles fixed Compact NS circuit breakers and fixed Compact NS switch disconnectors. They can be adapted to Compact NS 630b/800/1000 circuit breakers with N/H breaking capacity codes. They can be adapted also to Compact NS 630b/800/1000 NA switch disconnectors. These front connections terminals are designed for bottom mounting. They are equipped with M10 captive screws for direct connection of bars. Bare cable and cable with lugs can be adapted using some accessories. The pitch is 70mm and the terminal width is 44mm. They are sold by set of 3 parts.
