Díl KSA1000ED45010 rovný 1000A 5m

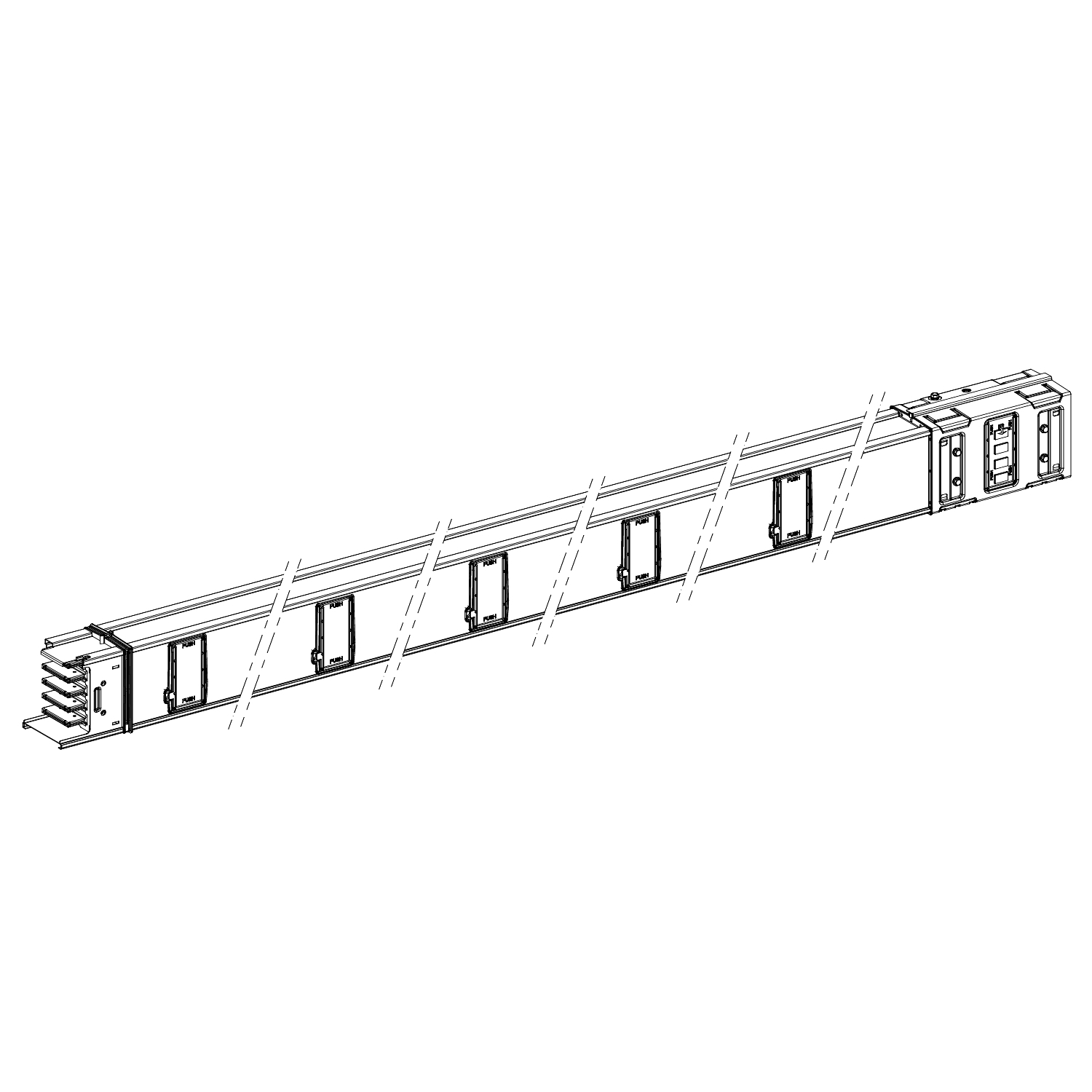

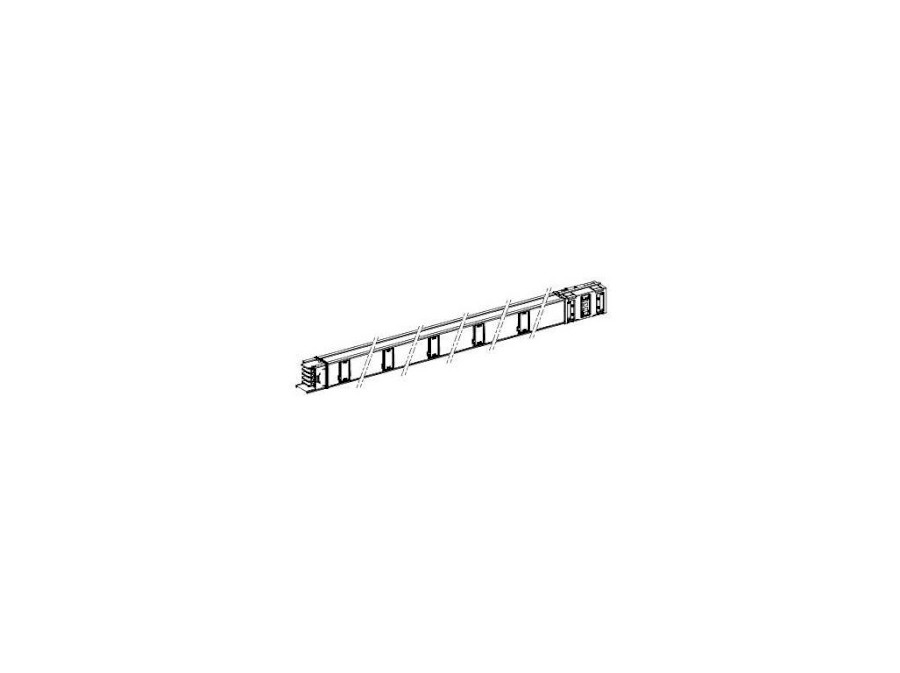

Canalis busbar trunking for KSA. It's applied to medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 1000A at 35 ?. Mounted by screws with up neutral position. Distribution length busbar whose material is aluminium and trunking polarity is 3L + N + PE and 3L + PEN. Designed with 10 tap-off outlets. It provides 1.27 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
