Vývodní konektor modulární 32A 5M KNB32CM55

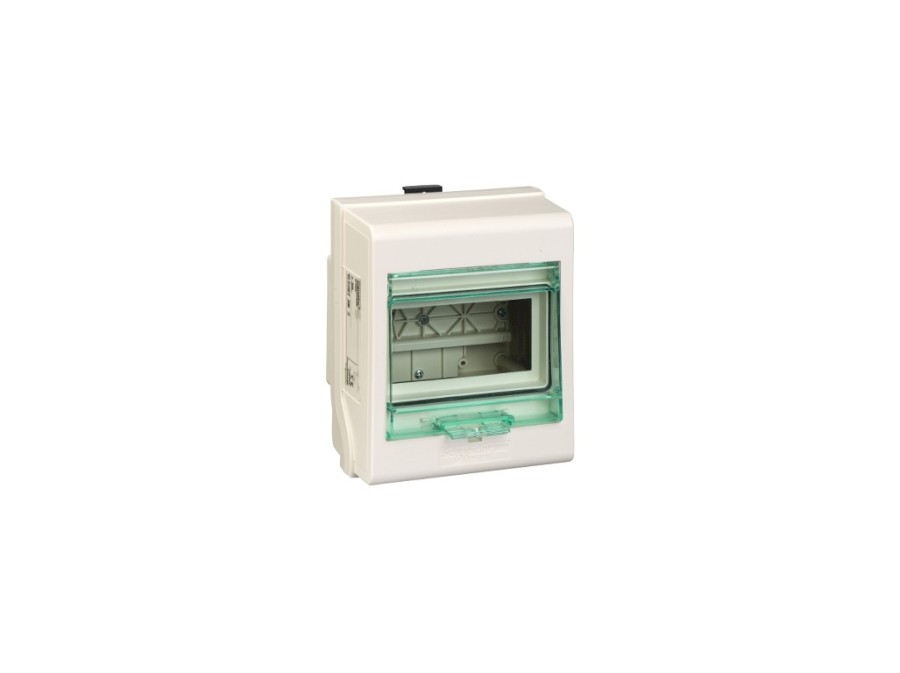

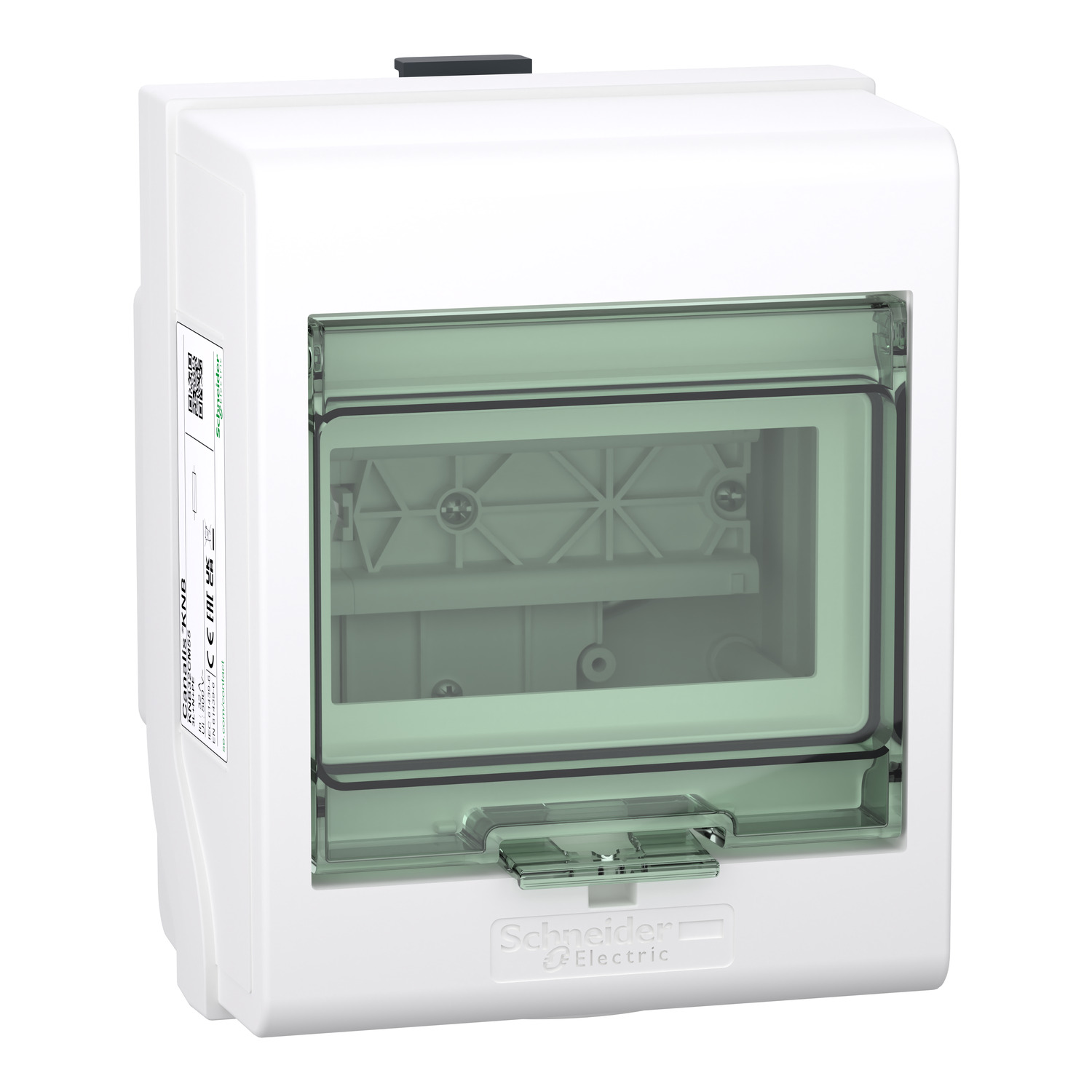

Canalis tap off unit for KN. It is compatibility with Canalis KN busbar trunking with plug-in outlets. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 32A. It provides miniature circuit breaker (MCB) protection and 5 modules of 18mm. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. Door/cover could be open front side. It is suitable for TT, IT and TN-S earthing system. It provides white RAL 9001 surface treatment. Blanking plate could be provided, but circuit breaker to be ordered separately. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
