Svodič PRD1 25r 3P+N T1+T2

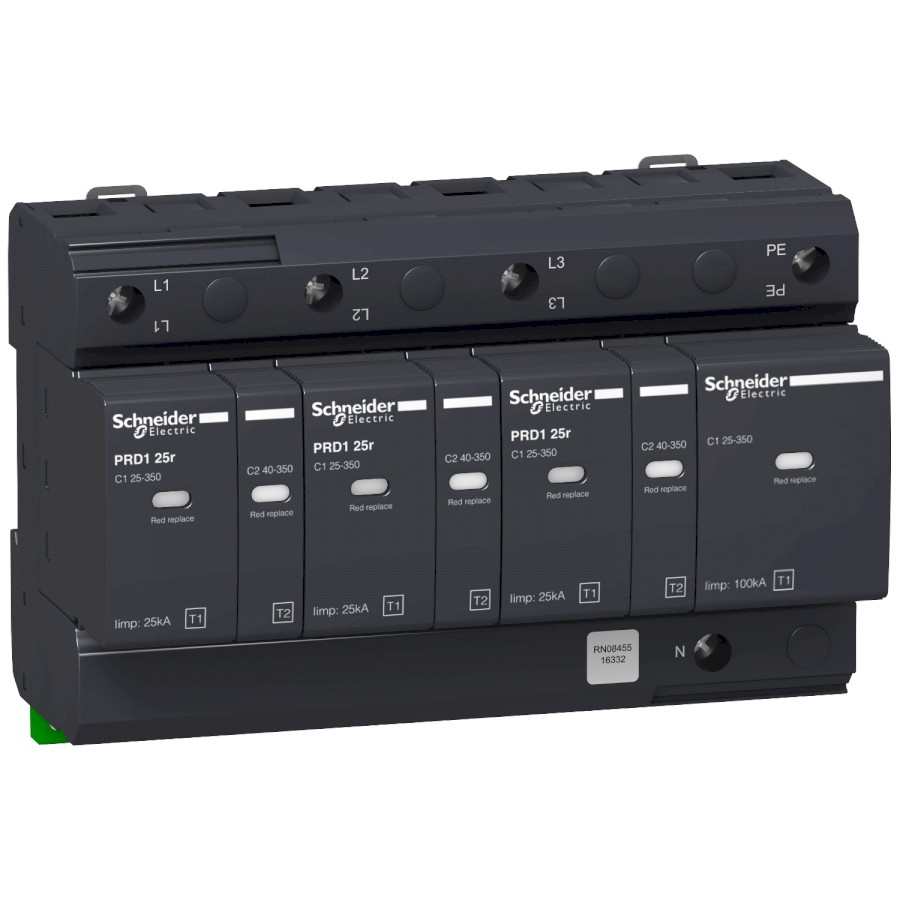

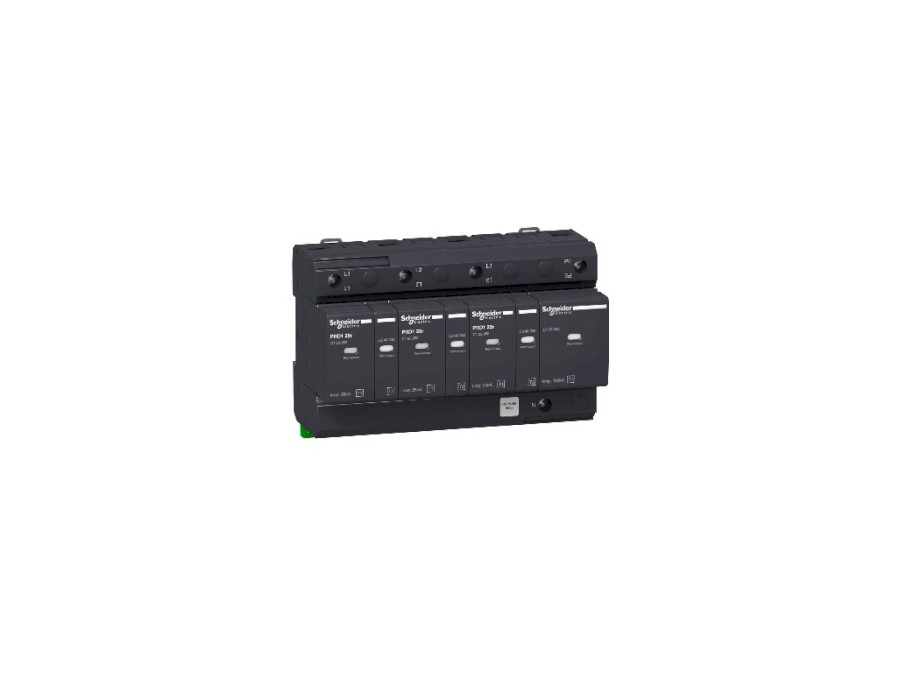

This Multi9 PRD1 product is a surge arrester with pluggable cartridge. It has 3P+N pole. The maximum continuous operating voltage is 350V (L-N or N-PE). It is available for TT or TN-S earthing system. It is a type 1 and type 2 surge arrester. It protects electrical installations against direct lightning strikes by finely clipping the lightning wave overvoltages. It is fitted with easy-to-replace withdrawable cartridges. The device has an end-of-life indication (white for correct operation, red at end of life) with remote signalling. The nominal discharge current (impulse 8-20 µs) is 25kA with a maximum of 40kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 350VAC. The maximum lightning current Iimp (impulse current 10-350 µs) is 25kA between L-N and 100kA between N-PE. The rated voltage network is 230VAC or 400VAC. The voltage protection level goes up to 1.5kV. The degree of protection is IK05 and IP20 on its terminals becoming IP40 once in modular enclosure. It can be mounted on DIN rail for modular installation. Its width is 16 modules of 9mm. This product complies with IEC/EN 61643-11 standard.
