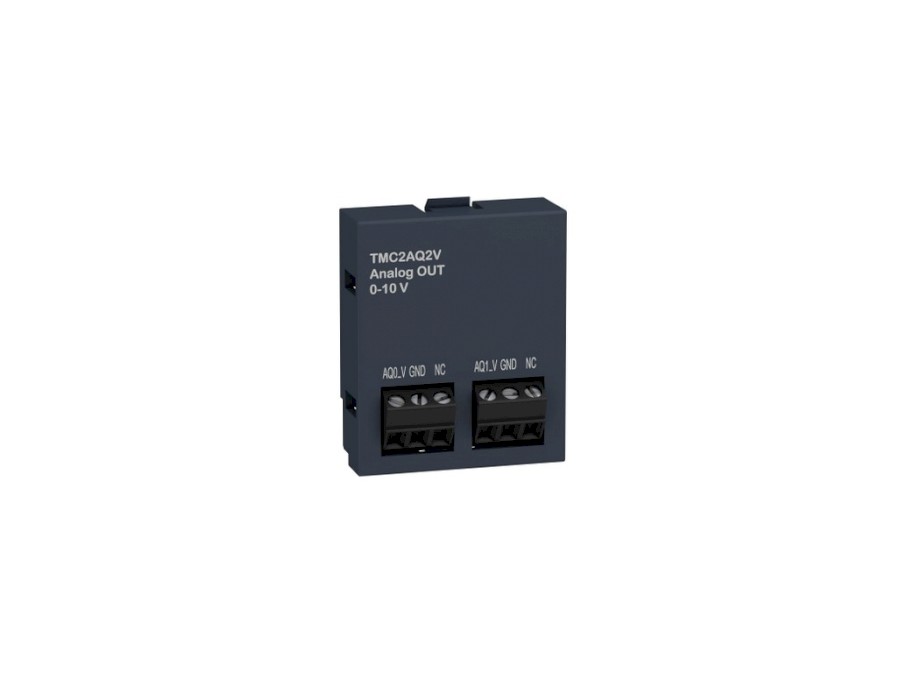

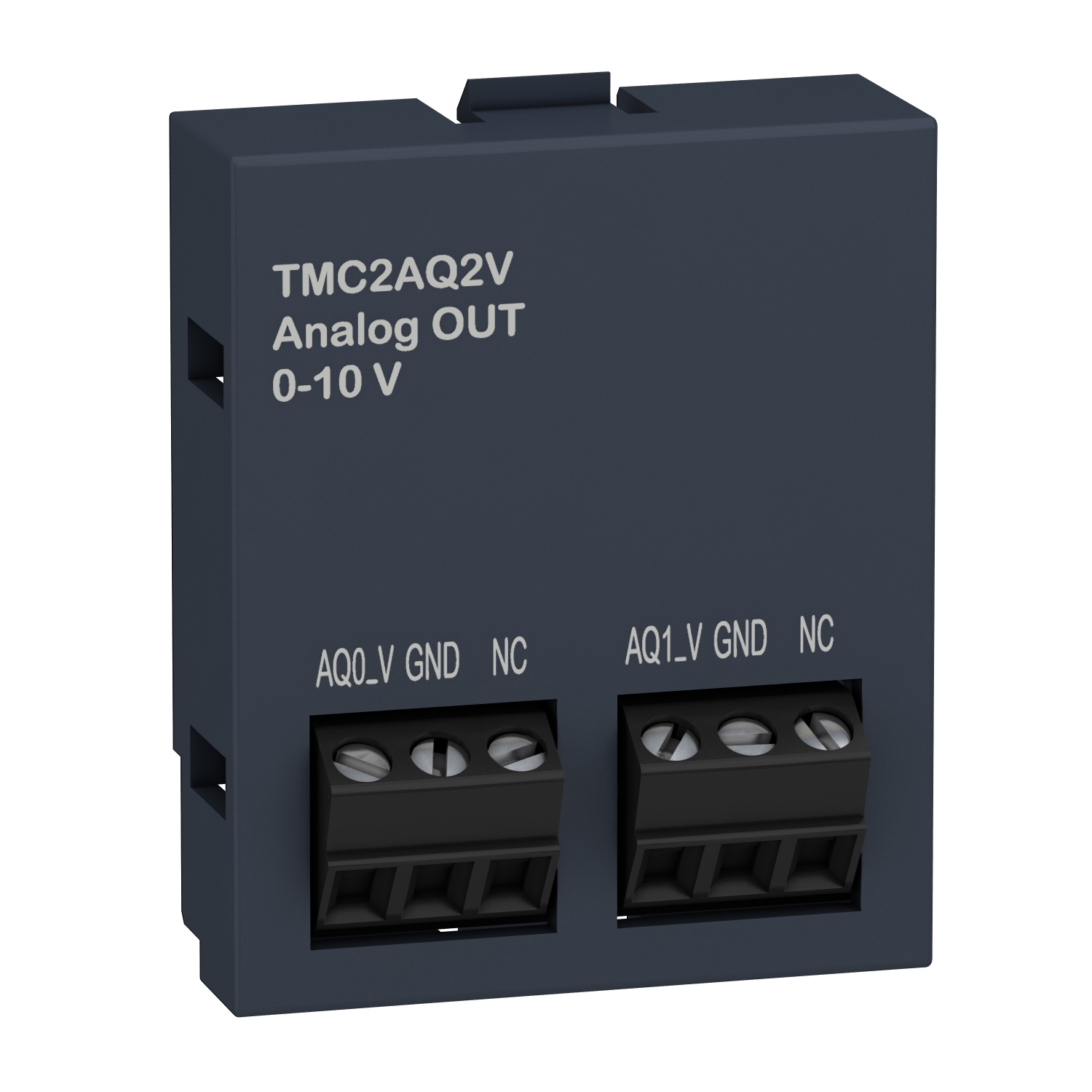

Modul TMC2AQ2V 2x analog. výstup

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue output cartridge provides 2 outputs with 12bit output resolution. The analogue output voltage ranges from 0V to 10V. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is 30m for input. There is no insulation between analogue output and internal logic. It is furnished with screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
