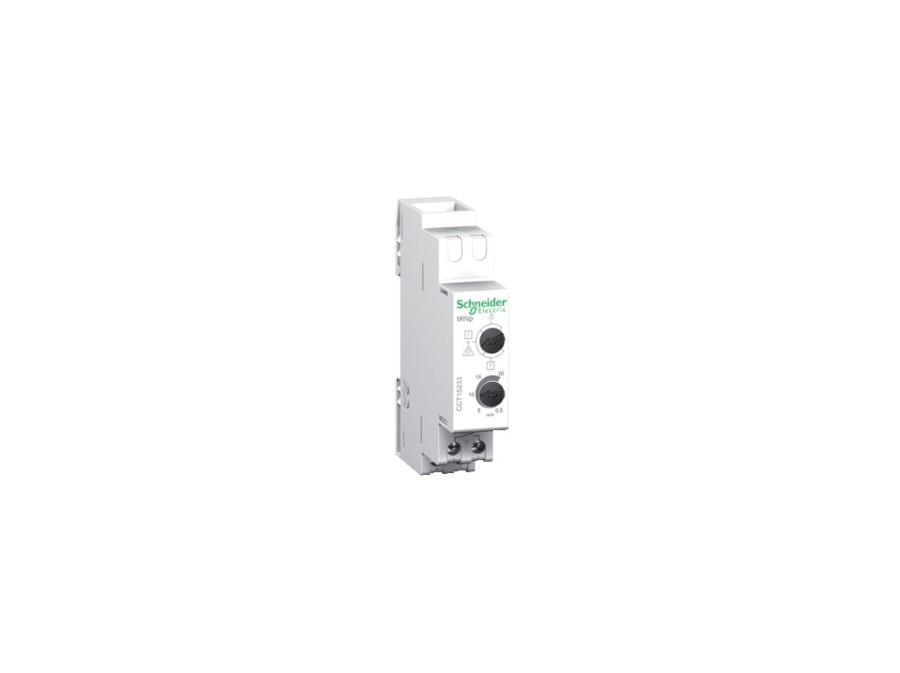

Automat MINp schodišťový CCT15233

The Acti 9 MINp timer allows closing and then opening of a contact in a determined time. It also provides warning that the lighting is about to be switched off by flickering of the lamplight (switch-off warning). The Time delay is adjustable from 0.5 to 20 min. Functions: Three operating modes triggered by switch on front face. Timer mode with switch-off warning function built into the device. The lamp blinks 40 and 30 s before the end of the time delay. Timer mode mode without switch-off warning function. Permanent mode with constant lighting. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 6 VA. Operating temperature -25°C to +50°C. Width (9 mm modules): 2. Insulation class: Class II. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. Time delays (On and Off): Adjustable from 0.5 to 20 min. Number of channels: 1.
