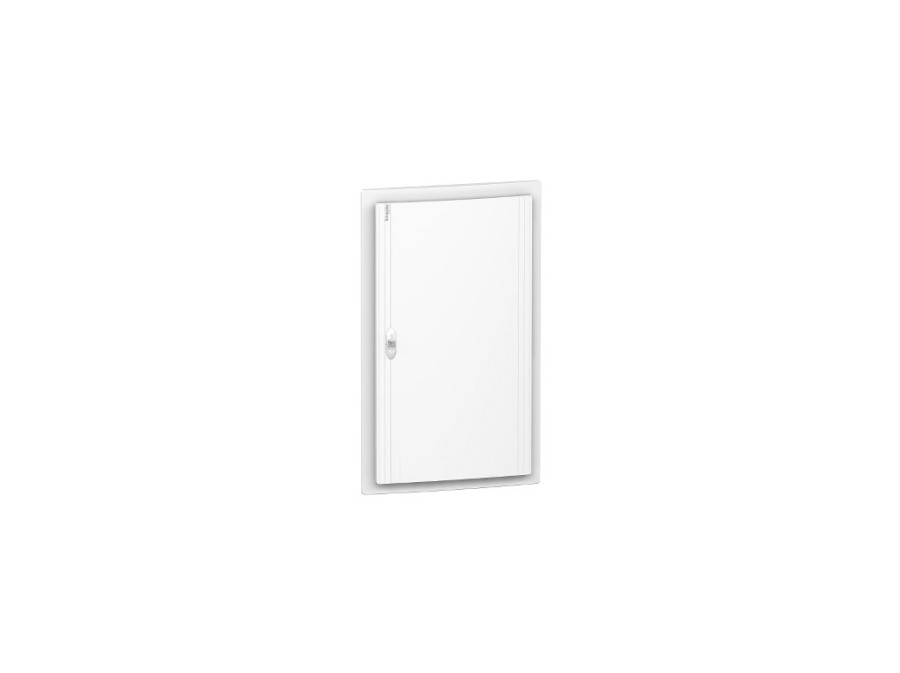

Skříň PRA 31418 72mod.do zdi PRAGMA

This Pragma enclosure is a flush mounted distribution enclosure. This plastic enclosure is composed of 4 rows of 18 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 with the door and IP30 without the door. It is provided with a plain door. The colour of the door and enclosure is white (RAL 9016). The one of the front face is grey (RAL 7004). It is intended for new or renovated installation in residential and small buildings. The cables can enter via the 4 sides of the enclosure by removable cable plate or via the back of the enclosure. It enables entry by cable or tube. It is equipped with a back plate and a reversible front cover with notch. It is provided with DIN rail fixed on the back of the enclosure. It comes with 1 earth and 1 neutral terminal blocks with their support. The earth and neutral terminal block have 29 outgoers (4x25mm2 + 25x4mm2). Marking kit, identification label and blanking plate are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The Ui rated insultation voltage is 800V. The In rated current is up to 125A. The dissipated power is 100W. This product is complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standards. The dimensions are (W) 486mm x (H) 810mm x (D) 129mm. The material of the enclosure is technoplastic. Its resistance to flames and to abnormal heat is 650°C. The IK degree of protection is IK09 with the door and IK08 without the door. The operating temperature is -25°C to +60°C.
