Termostat MTN5776-0000 LCD týdenní Merten

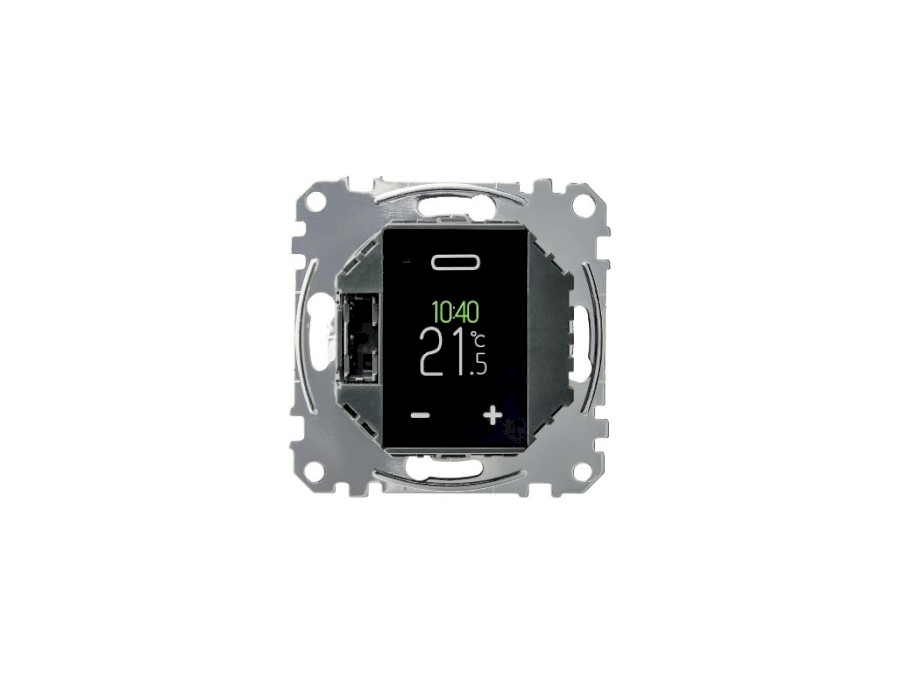

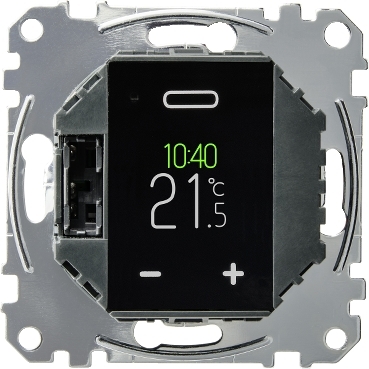

Schneider Electric Merten inserts electronical thermostat MTN5776-0000 is a mechanism with fixing frame and central plate for heating. This is a 2-pole electronical thermostat. The protection type is electronic overvoltage protection, overheating protection, improving safety level. And the electronical thermostat's associated fuse rating is 16A. In addition, the rated operational voltage of this device is 230V. Being made of PA (polyamide) 6 GF20 FR, metal material, this electronical thermostat is quite reliable and resistant. This device is (compatible with) to be completed with Artec/Antique design frame, to be completed with System M design frame. Its fixing mode is by screws, claws. It is 71 mm in width, 71 mm in height, 51 mm in depth, with an embedding depth of 32 mm. And the product weighs 0.22 kg. And the control type of this electronical thermostat is touch screen. The display resolution is 96 x 96 pixels, with display size of 44 mm, and display type of OLED screen. The temperature showed of this electronical thermostat is quite accurate, with measurement accuracy of +/- 0.5 °C. The information displayed include operating mode, operating time counter, temperature in °C, time, Besides, it reaches IK04 protection level, which can help protect against impact. It reaches IP20 degree of protection too. What's more, its directives are 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive. It obtained SEMKO, VDE certificate as well.
